Enclosed dry cleaning machine. > Perchloroethylene dry cleaning machine

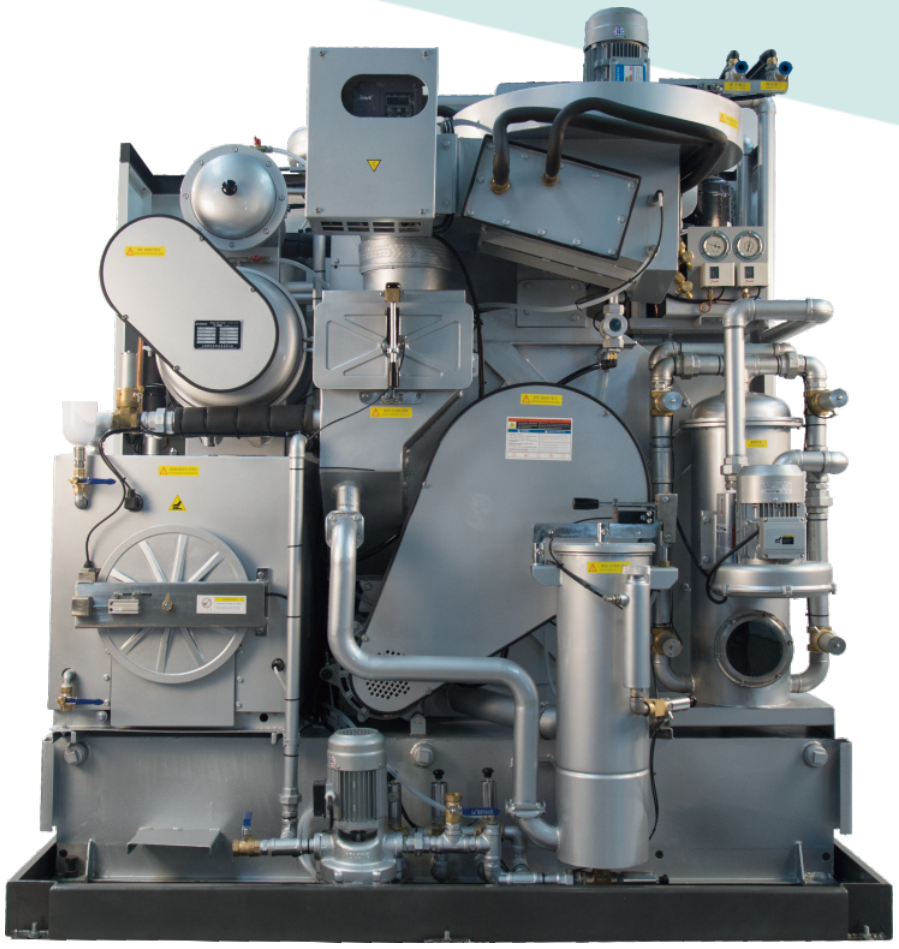

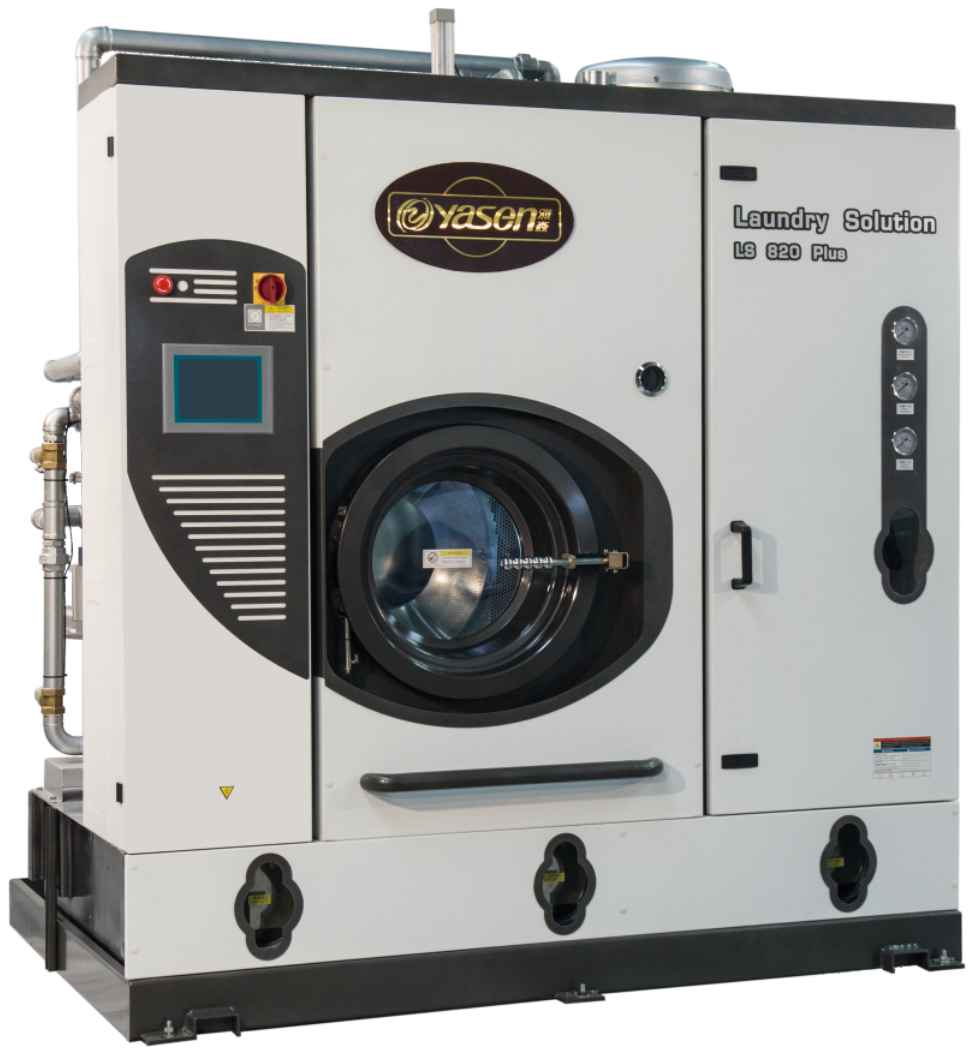

Perchloroethylene dry cleaning machine

Product Overview: The fully enclosed dry cleaning machine is a new generation of product developed by our company based on more than 20 years of dry cleaning manufacturing experience and combining Chinese and foreign technologies. It is energy-saving, environmentally friendly, efficient and economical. It is an ideal product for all types of hotel dry cleaning and laundry businesses to start-up investment in fully enclosed and environmentally friendly dry cleaning machines.

Application Industry:

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Brand Chain - Laundry Shop

Institutional Laundry

IWS Integrated Washing System

Video

Technical Features

Environmental protection and energy saving

The high-efficiency fully enclosed refrigeration recovery system effectively reduces the emissions and residues of perchlorethylene dry cleaning solvent, complies with industry and local emission standards, and is environmentally friendly and energy-saving.

operating system

Fully automatic computer operating system, one-click automatic washing, large-screen LCD display, human-machine dialogue mode, operation is clear at a glance.

Control system

Frequency conversion speed control system saves energy, electricity and reduces noise. Smooth and reliable operation.

Energy saving and silent

The air duct structure and the new energy-saving and silent (large turbine) fan blades reduce the drying time of clothes.

Thoroughly Distilled

Large-capacity, energy-saving distillation box with built-in steam heating, distillation is thorough, fast, energy-saving and safe.

Number of distillations

High-precision and high-centrifugal ecological filter, imported filter material, the filter area is increased year-on-year, and electric filtration greatly saves the number of distillations and significantly improves the quality of laundry

Technical Parameters

Model	Unit	LS 608 A	LS 610 A	LS 612 A
Solvents	/	C2Cl4	C2Cl4	C2Cl4
Rated Capacity	kg	8	10	12
Cleaning cage
Volume	lt	140	170	210
Diameter	mm	φ800	φ800	φ800
Depth	mm	280	340	420
Solvent tank
#1 volume	lt	90	90	90
#2 volume	lt	90	90	90
#3 volume	lt	140	140	140
Filter
Centrifugal filter capacity	lt	45	45	45
Still Box
Static box volume	lt	140	140	140
Scroll speed
Washing speed	Revolutions per minute	Adjustable frequency
Dehydration speed	Revolutions per minute	Adjustable frequency
Electric
Power supply	V/P/Hz	220/1/50380/3/50		380/3/50
Motor	kW	1.5	2.2	2.2
Compressor	kW	1.5	1.5	1.5
Fan	kW	0.75	0.75	0.75
Pump	kW	0.55	0.55	0.55
Filter motor	kW	0.55	0.55	0.55
Drying (electric heating type)	kW	4.8	4.8	6.4
Distillation (electric heating type)	kW	9.0	9.0	9.0
Installed power	kW
Electric heating model	kW	9.0	9.0	12
Steam Heating Models	kW	4.0	4.0	4.0
Pressure (max-min)
Steam pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6
Cold water pressure	MPa	0.2-0.4	0.2-0.4	0.2-0.4
Compressed air pressure	MPa	0.3-0.6	0.3-0.6	0.3-0.6
size
Length	mm	1680	1680	1680
Width	mm	1250	1250	1330
Height	mm	1970	1970	1970
weight	kg	980	1150	1280

Perchloroethylene dry cleaning machine

Technical Features

Intelligent

Efficient

Energy-saving

Easy to Operate

Technical Parameters
