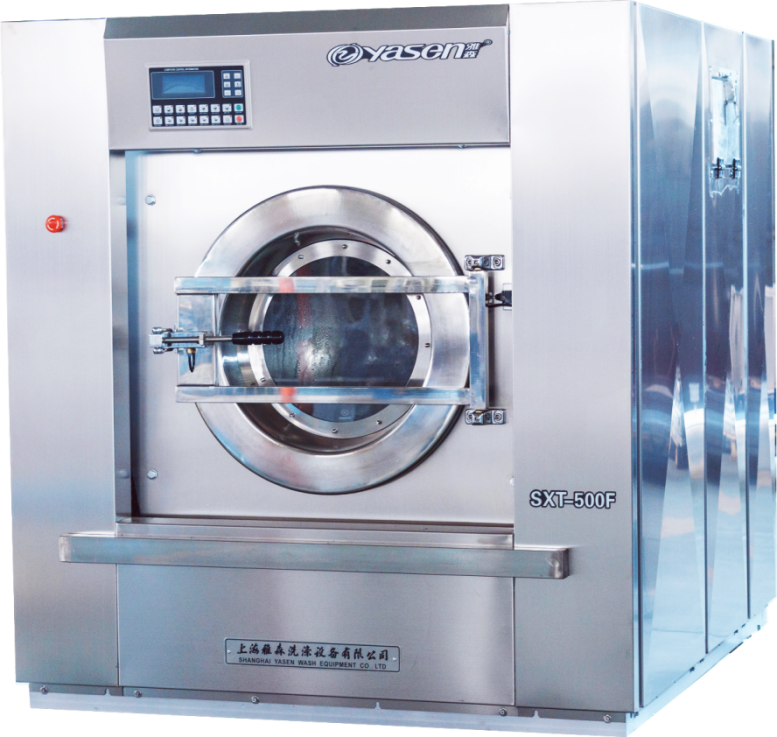

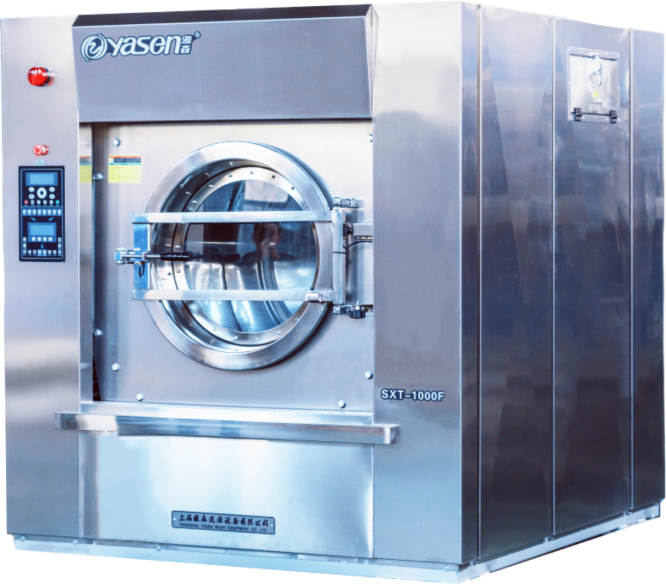

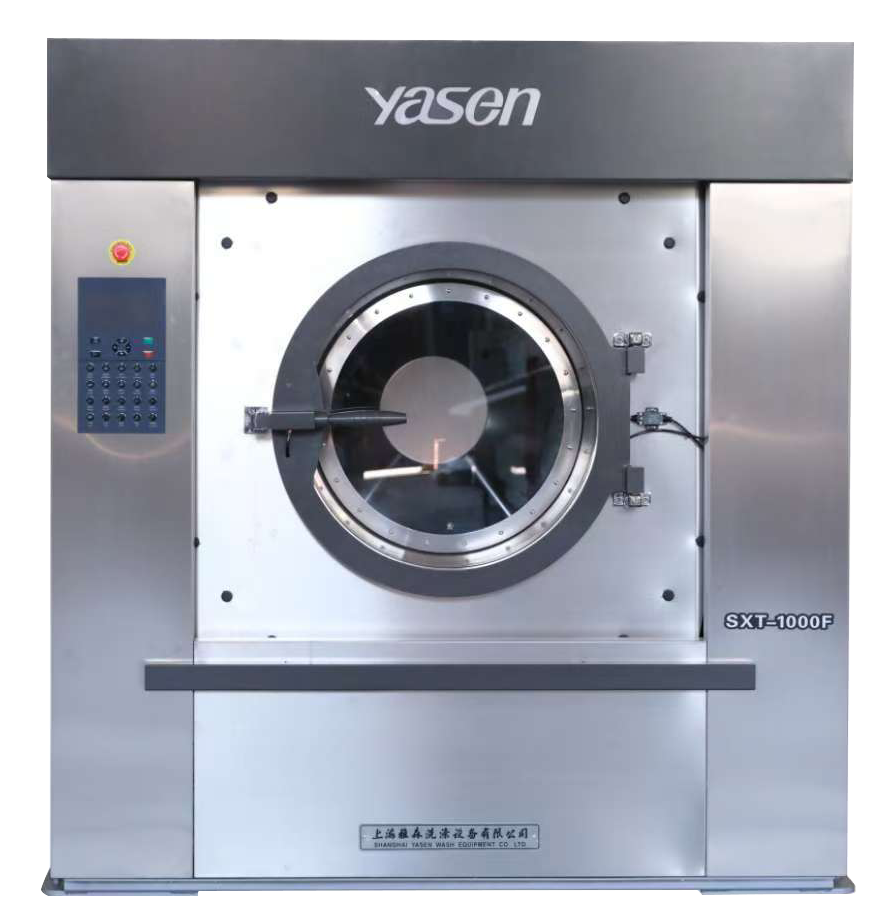

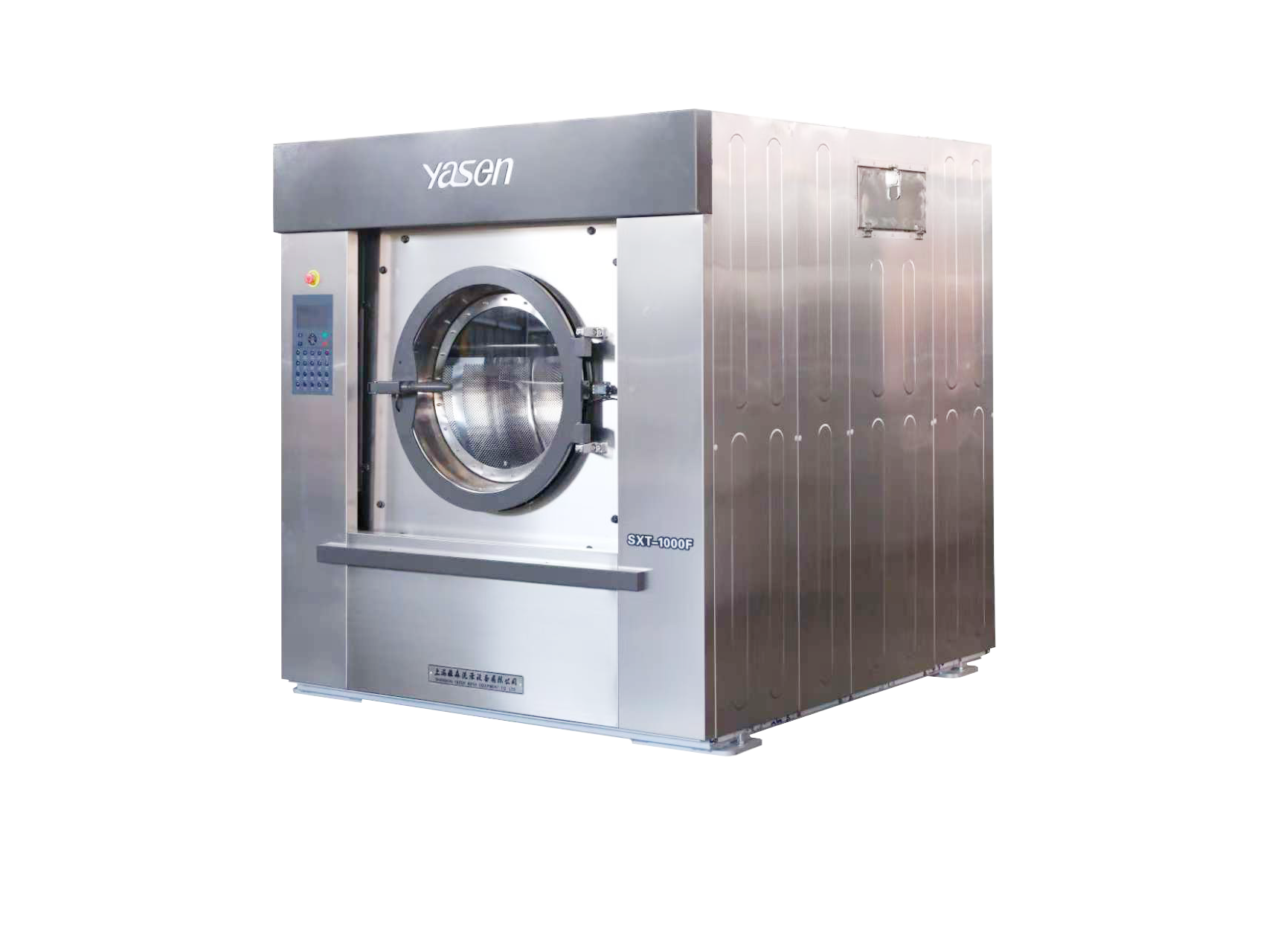

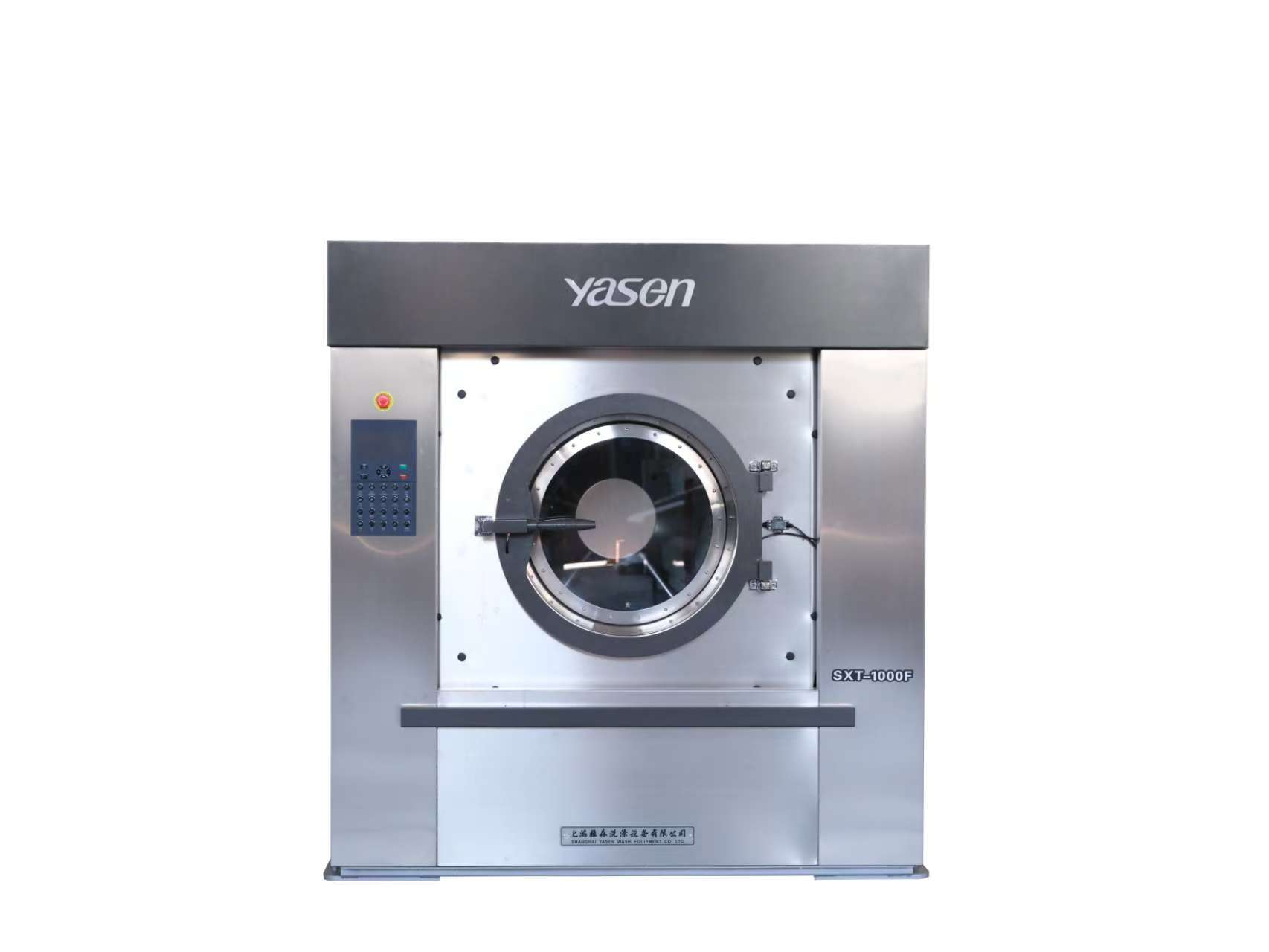

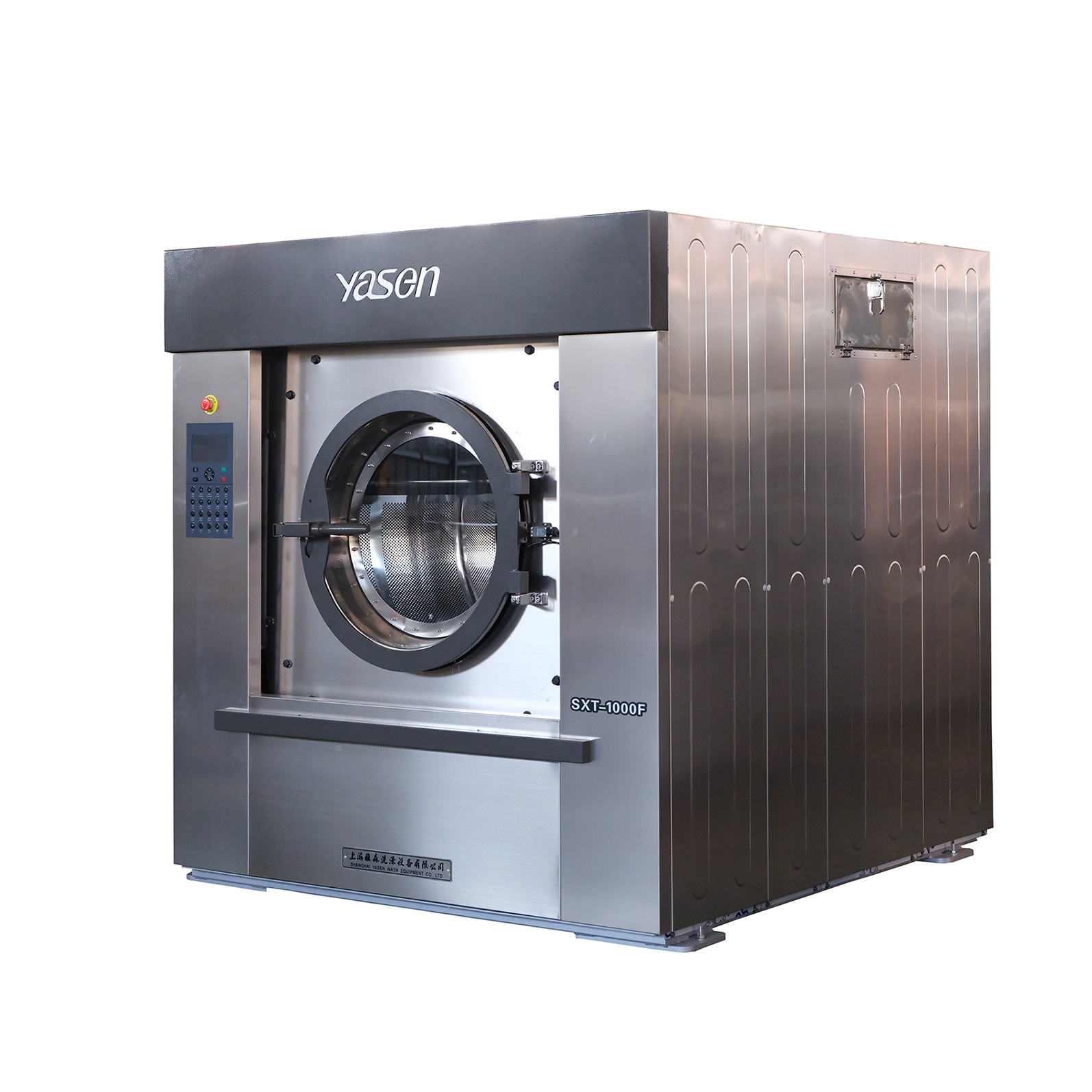

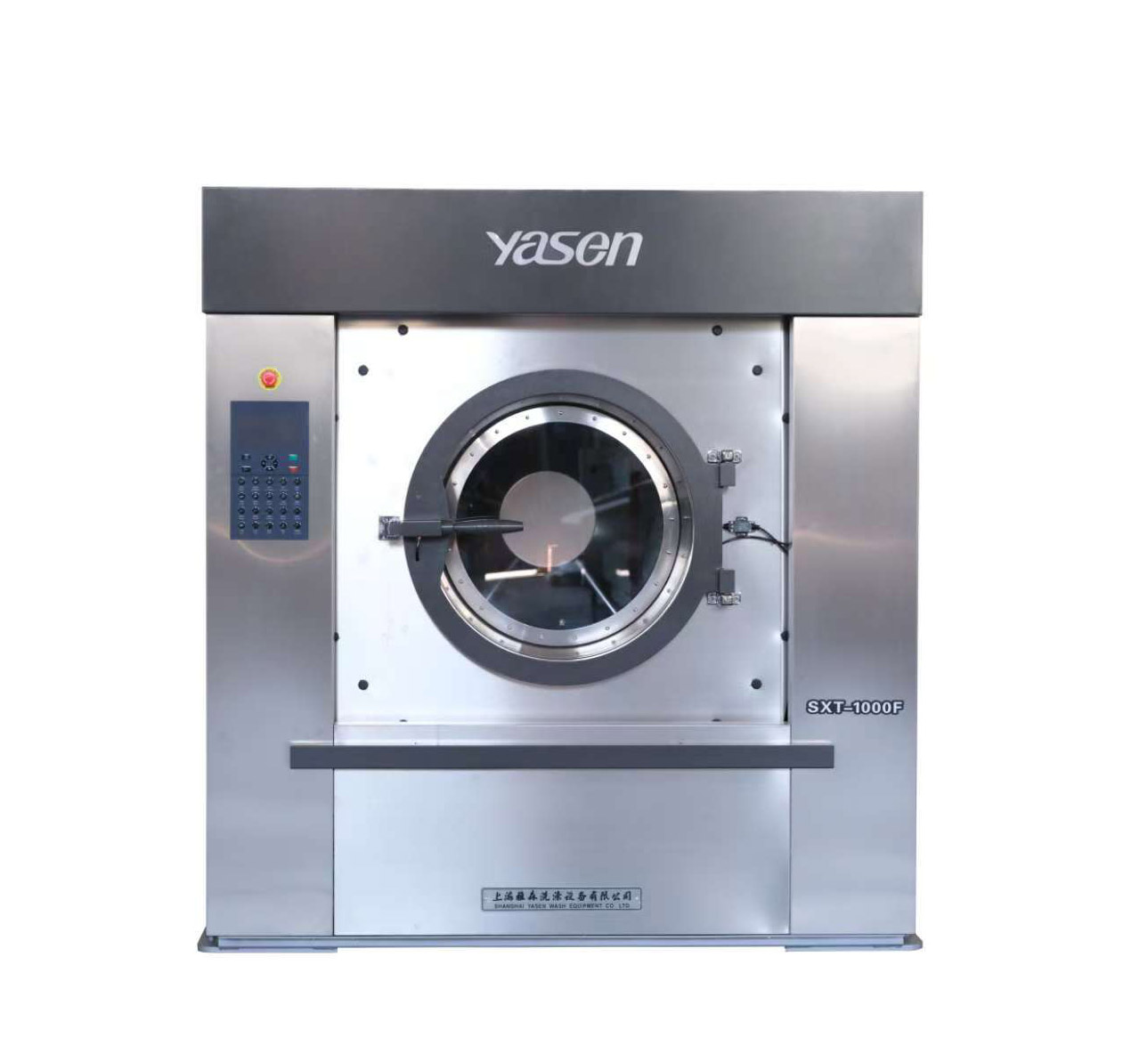

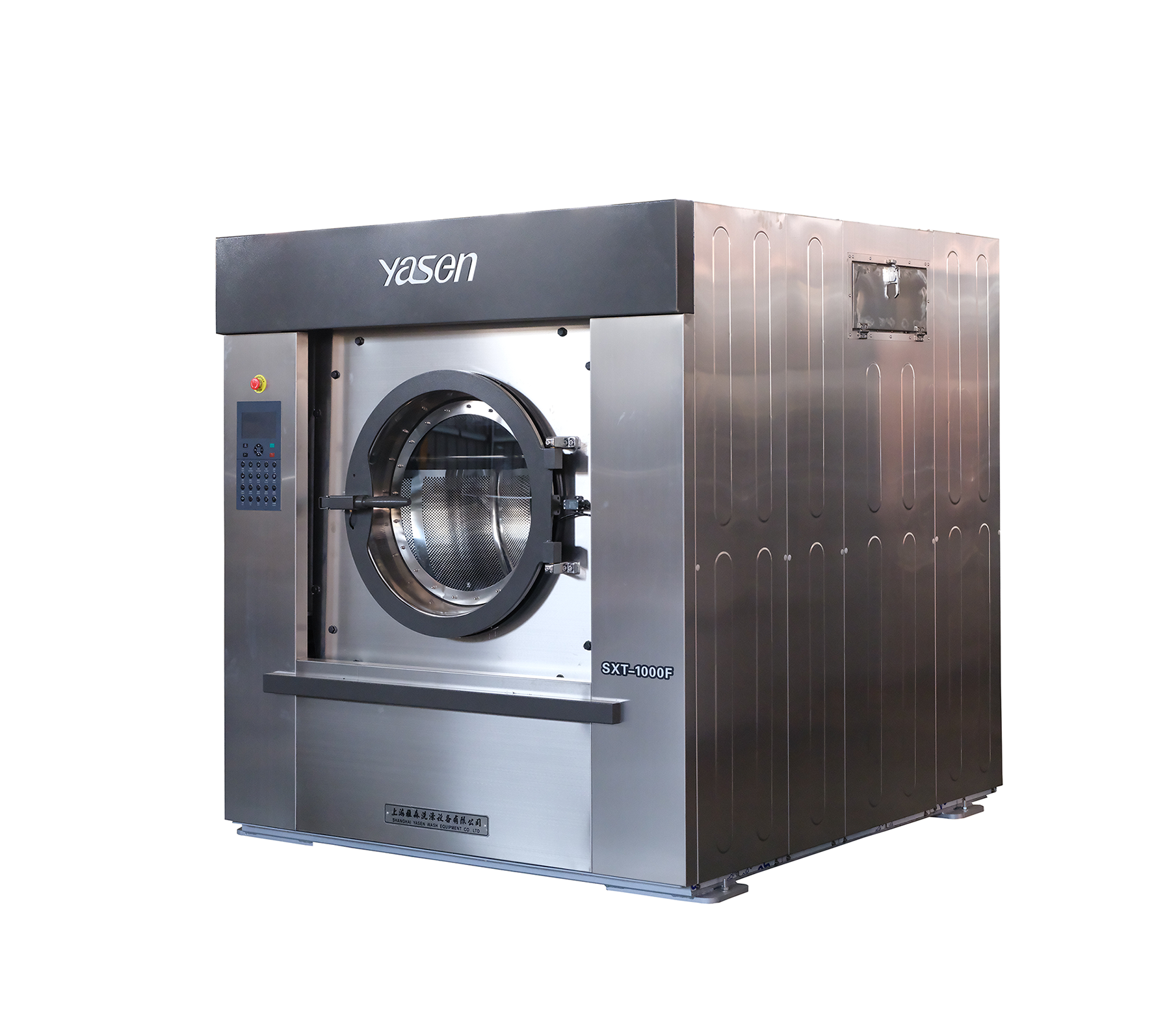

Automatic suspension washing machine

Product Overview: Water elution and dry dual-purpose machine is suitable for hotels, restaurants, hospitals, clothing factories, industrial and mining enterprises and individual washing and dyeing industries. Used for washing all kinds of cotton, wool, hemp, chemical fiber, blended fabric and other clothing and fabrics.

Application Industry:

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Brand Chain - Laundry Shop

Institutional Laundry

Video

Technical Features

Computer control system

Computer control system, superior performance, powerful function. Built-in 30 sets of programmable automatic programs and 5 sets of standard programs, Chinese LCD display, humanized operation interface. Users can control the working liquid level, washing temperature and washing time in real time according to the actual situation, which can fully meet the needs of washing linen under famous working conditions.

Full suspension structure design

Full suspension structure, the spring of the shock absorber system is specially designed according to the different recovery torque of the suspension body, and the shock absorption rate is high. Frequency conversion drive, stepless speed regulation, quiet and stable operation.

Real-time control design

Users can control the working liquid level, washing temperature and washing time in real time according to the actual situation, and fully meet the washing needs of linen under various working conditions. Stable operation, convenient maintenance.

Innovative structure design

Innovative structure of high strength stainless steel inner cage design, to ensure that the equipment under heavy load conditions of extraordinary service life. Large shaft seat and short shaft design, greatly reduce the lateral vibration torque, the main bearing precision concentric, durable.

Large shaft seat and short shaft

Unique high strength large shaft seat and high precision short shaft design, greatly reduce the lateral vibration moment, the main bearing precision concentric, durable. Using advanced finite element optimization design of the outer cylinder, made of high quality stainless steel corrosion resistance, strong and reliable.

Double waterproof patent design

Spindle sealing technology won the national invention patent (patent No. ZL200810040816.1) Double waterproof design, imported fluorine rubber sealing elements, unique compartment design, protect bearings and improve service life.

Technical Parameters

Parameter	Unit	SXT-150F	SXT-200F	SXT-300F	SXT-500F	SXT-1000F	SXT-1300F	SXT-1500F
Rated Capacity	kg	15	20	30	50	100	130	150
Drum
Diameter	mm	640	750	900	970	1200	1300	1470
Depth	mm	480	480	460	680	888	980	880
Speed of cage rotation
washing	rpm	48	45	42	40	35	32	28
Medium/high stripping	rpm	810	800	770	750	670	650	620
Electrical system	v/p/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Motor power	kW	1.5	2.2	3	4	7.5	11	15
Electric heating type power	kW	9	18	27	36	72	/	/
Mode of heating		Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating	Steam Heating
Diameter of steam pipe	inch	G 3/4″	G3/4″	G3/4″	G1″	G1″	G1″	G11/2″
Steam pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Cold/hot water pipe size	inch	G3/4″	G3/4″	G1″	G11/2″	G11/2″	G2″	G2″
Tap water pressure	MPa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Outlet of water	mm	Φ76	Φ76	Φ90	Φ90	Φ127	Φ127	Φ140
Compressed air pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Noise	dB(A)	≤78	≤78	≤78	≤78	≤78	≤78	≤78
Whole machine weight	kg	450	550	1500	2200	2900	3900	4900
Width x depth x height	mm	1100×1000×1550	1100×1050×1550	1440×1240×1750	1540×1815×1605	1910×2190×1982	2060×2330×2018	2320×2375×2215
