Enclosed dry cleaning machine. > Fully enclosed petroleum dry cleaning machine (distillation purification type)

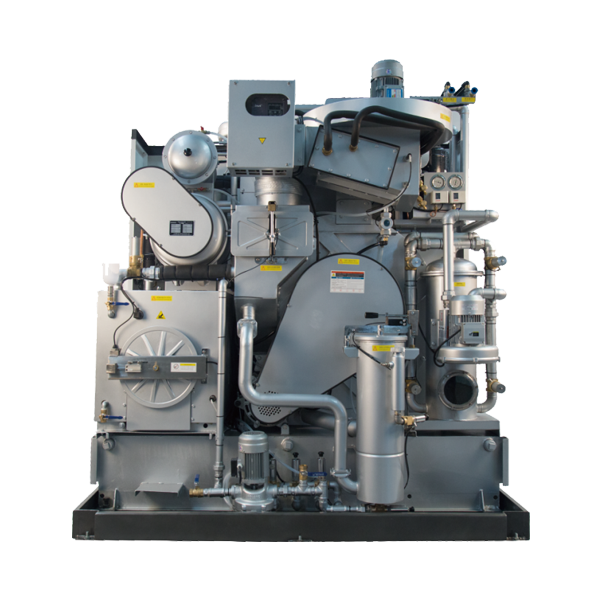

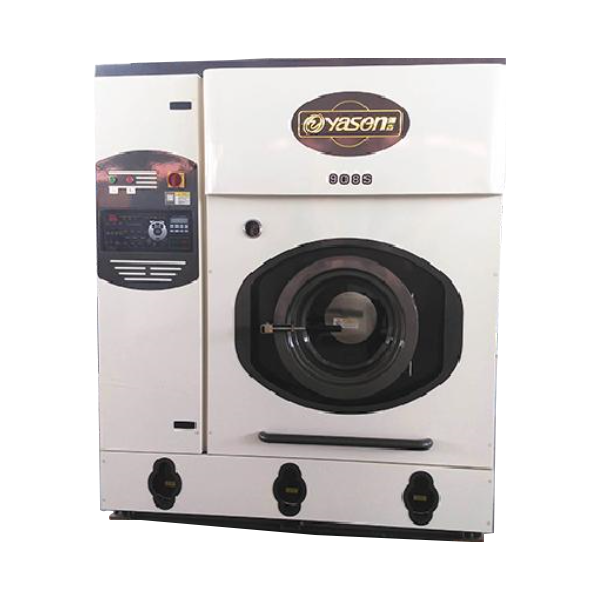

Fully enclosed petroleum dry cleaning machine (distillation purification type)

Product Overview: Yasen LS910 fully enclosed and fully automatic petroleum dry cleaning machine is a new generation product developed and designed by our company based on more than 20 years of dry cleaning machine manufacturing experience and combined with Chinese and foreign technologies. It is energy-saving, environmentally friendly, efficient and economical, and is an ideal product for all kinds of hotel dry cleaning rooms and laundry business ventures.

Application Industry:

Star Hotel Laundry

Public Laundry Factory

Medical Sanitary Washing

Brand Chain - Laundry Shop

IWS Integrated Washing System

Video

Technical Features

Operating system

Fully automatic computer operating system, automatic washing can be completed with one click; large-screen LCD display, human-machine dialogue mode, operation is clear at a glance.

Control system

Adopts variable frequency speed control system to save power, reduce noise and make the operation more stable and reliable.

Refrigeration system

High-efficiency fully enclosed refrigeration recovery system, which effectively reduces the emissions and residues of petroleum dry cleaning solvents, complies with industry and local emission standards, and is environmentally friendly and energy-saving.

Air duct structure

Unique air duct structure design, new energy-saving and silent "super large turbine" fan blades, reduce drying time.

Double protection

The drying system has a nitrogen access safety protection system and an automatic pressure relief safety and explosion-proof device to double protect the safety of the entire drying process.

Distillation safety

Automatically compensated vacuum negative pressure distillation system makes the distillation of petroleum dry cleaning solvents safe, energy-saving and fast. Equipped with two sets of large-capacity filtration systems, it significantly improves laundry quality.

Technical Parameters

Model	Unit	LS 608 A	LS 610 A	LS 612 A
Solvents	/	C2Cl4	C2Cl4	C2Cl4
Rated Capacity	kg	8	10	12
Cleaning cage
Volume	lt	140	170	210
Diameter	mm	φ800	φ800	φ800
Depth	mm	280	340	420
Solvent tank
#1 Volume	lt	90	90	90
#2 Volume	lt	90	90	90
#3 Volume	lt	140	140	140
Filter
Centrifugal filter capacity	lt	45	45	45
Still Box
Static box volume	lt	140	140	140
Scroll speed
Washing speed	Revolutions per minute	Adjustable frequency
Dehydration speed	Revolutions per minute	Adjustable frequency
Electric
Power supply	V/P/Hz	220/1/50380/3/50		380/3/50
Motor	kW	1.5	2.2	2.2
Compressor	kW	1.5	1.5	1.5
Fan	kW	0.75	0.75	0.75
Pump	kW	0.55	0.55	0.55
Filter motor	kW	0.55	0.55	0.55
Drying (electric heating type)	kW	4.8	4.8	6.4
Distillation (electric heating type)	kW	9.0	9.0	9.0
Installed power	kW
Electric heating model	kW	9.0	9.0	12
Steam Heating Models	kW	4.0	4.0	4.0
Pressure (max-min)
Steam pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6
Cold water pressure	MPa	0.2-0.4	0.2-0.4	0.2-0.4
Compressed air pressure	MPa	0.3-0.6	0.3-0.6	0.3-0.6
size
Length	mm	1680	1680	1680
Width	mm	1250	1250	1330
Height	mm	1970	1970	1970
weight	kg	980	1150	1280
