Fully automatic high-speed folding machine > Fully automatic high speed folding machine

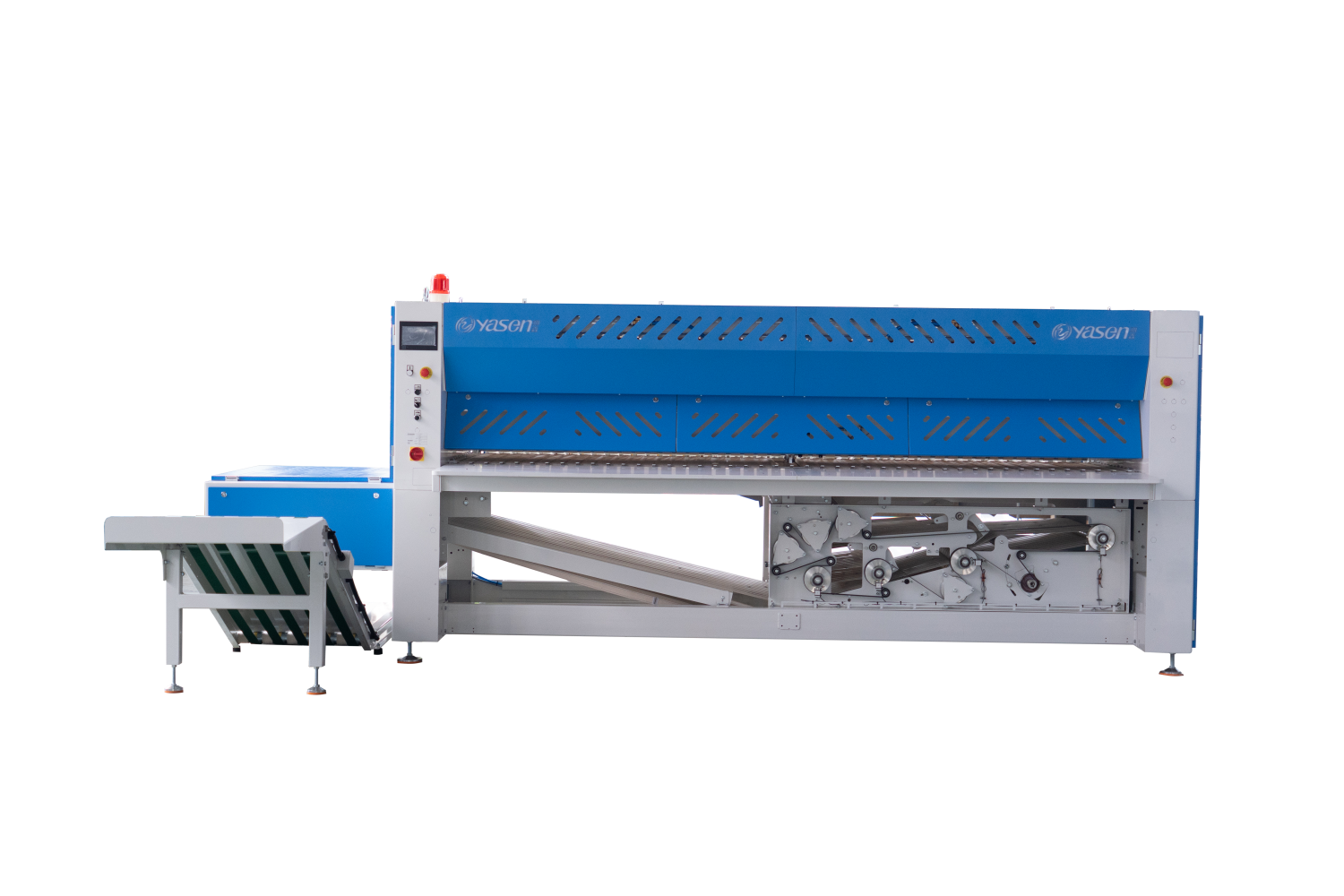

Fully automatic high speed folding machine

Product Overview: The folding speed is fast, and the maximum folding speed is 60 meters/minute. The maximum folding speed is 1,200 sheets, and the folding precision is high. The microprocessor computer forms the control system, and the judgment and action output are accurate to ensure the folding precision. Yasen's fully automatic high-speed folding machine, high-speed double-sided ironing machine, and high-speed four-station spreading machine are used together to form an "ultra-high-speed ironing line" with program linkage function.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Fast and efficient

The folding speed is fast, and the maximum folding speed is 60 meters/minute. The maximum folding speed is 1,200 sheets, the probability of linen blocking is low, the rejection rate is low, the folding accuracy is ensured, the operation is stable, and the operation is convenient.

Control system

The high-speed folding machine adopts an intelligent PIC control system, and the microprocessor computer forms the control system, which accurately judges and outputs actions to ensure folding accuracy. High-efficiency folding, can store a variety of folding programs.

Stacking configuration

The high-speed folding machine is equipped with a stacking machine as standard, which does not require frequent bending to work, prevents fatigue, and improves work efficiency. The number of linen stacking can be set by itself, and the intelligent control system is used.

Photoelectric detection

The folding action is completed by the airflow and the gate knife action alternately to ensure the folding quality. Photoelectric detection and sensor parts are sensitive and accurate; 24V low-voltage control circuit is safe and reliable, and easy to maintain.

Format size

Users can fold two horizontally and three vertically 5 times according to the size of the linen format. The maximum foldable size is 3300mm, so that the fabric can be folded efficiently under ideal conditions.

Linkage function

Yasen's fully automatic high-speed folding machine, high-speed double-sided ironing machine and high-speed four-station fabric spreading machine are used together to form an "ultra-high-speed ironing line" with program linkage function.

Technical Parameters

Model	unit	ZD-3000V	ZD-3300V	ZD-3300V-4	G/ZD-3300V-4
Maximum folded width	mm	3000	3300	3300	3300
Maximum folded length	mm	3600	3600	3600	3600
Folding speed	m/min	0-60	0-60	0-60	0-60
Electric	v/p/Hz	380/3/50	380/3/50	380/3/50	380/3/50
Rated power	kW	1.47	1.47	1.47	2.5
Compressed air pressure	MPa	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Compressed air consumption	L/min	60	60	60	60
Total Weight	kg	1580	1600	1600	1600
Width × Depth × Height	mm	4255×3052×1900	4255X3052X1900	4255X3052X1900	4255×3052×1900
