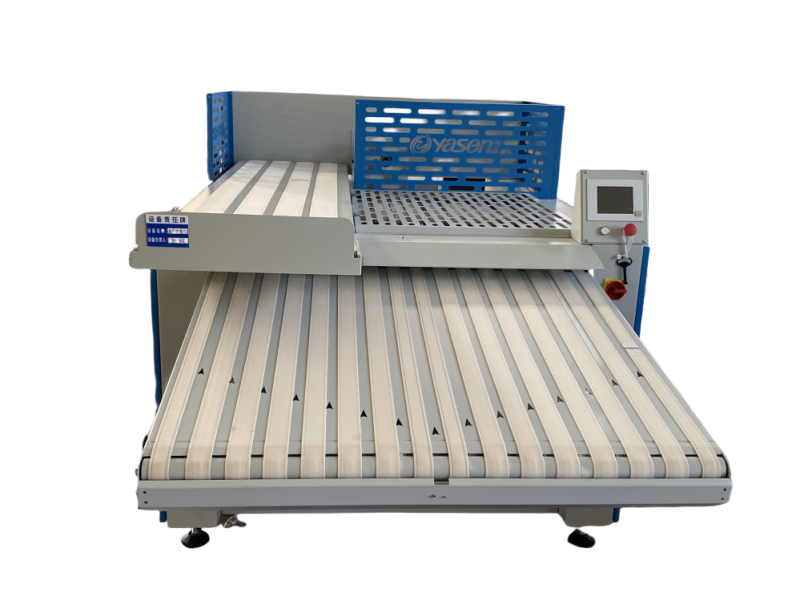

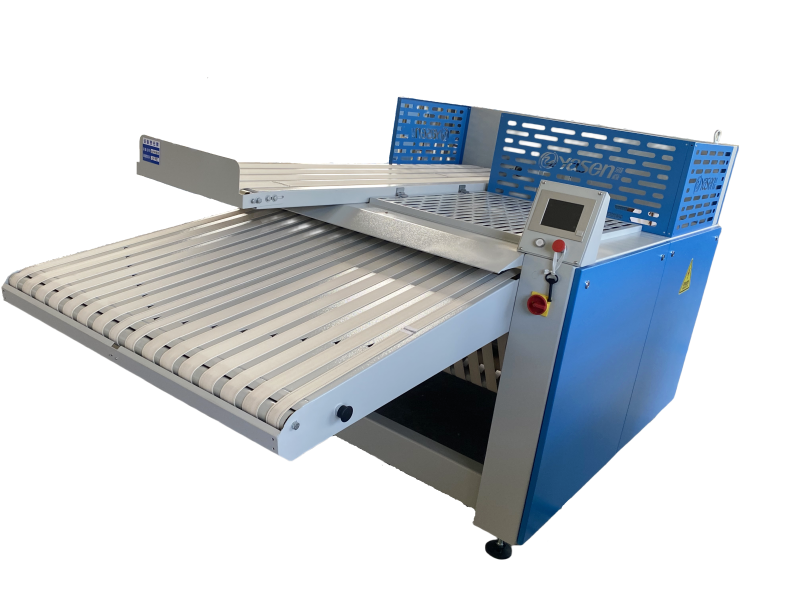

Multifunctional Towel Folding Machine

Product Overview: The multifunctional towel folding machine uses a reverse belt for the first and second longitudinal folds, followed by a transverse fold combined with a stacking function. After completing these steps, one or two additional longitudinal folds can be performed, or a combination of a transverse fold and stacking can be done. This allows for cross folding, forming the towels into a square shape.

Application Industry:

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

IWS Integrated Washing System

Video

Technical Features

Folding Steps

The multifunctional towel folding machine uses a reverse belt for the first and second longitudinal folds. Then, a transverse fold is performed together with the stacking function. After completing this sequence, one or two additional longitudinal folds can be done, or a combination of a transverse fold and stacking can be performed. This allows for cross folding, forming the towels into a square shape.

Control Panel

The control panel is programmed to correctly set the folding sequence for each towel. It features advanced automation for stacking, with fast response times and short work cycles. The machine uses various intelligent controls, integrating new technologies in computing, communication, and control to meet the actual needs of towel folding. It offers personalized embedded software and intelligent comprehensive monitoring functions.

Control System

The control system includes advanced automation for stacking, ensuring quick response times and short work cycles. It uses multiple intelligent controls, integrating new technologies in computing, communication, and control to address the specific requirements of towel folding. The system provides personalized embedded software and intelligent comprehensive monitoring functions.

Stacking and Discharge

During the stacking and discharge process, an automatic retractable device controls the extension and retraction of the conveyor belt, ensuring the direction of operation remains unchanged. This ensures that stacked towels are smoothly transferred to the next conveyor belt.

Ensuring Stacking Stability

The machine ensures that multiple stacked towels are stably conveyed to the next conveyor belt through the smooth operation of the conveyor system.

Easy Operation

The machine supports multiple modes, including manual and automatic operations. It is easy to use, highly automated, and adaptable to various types of towels.

Technical Parameters

Name	Unit	Multifunctional Towel Folding Machine (Imported System Cross Fold)
Model		FM-1200AP
Maximum Width Dimension	mm	1200×2200
Operating Speed	pcs/h	800-1000
Power Supply	Hz	AC380V/3P/50
Installed Power	KW	2.1
Air Pressure	MPa	0.6
Air Consumption	Piece	6L
Total Weight	kg	1000
Dimensions (W × D × H)	mm	1590×2950×1540
