IWS Integrated Washing System > Shuttle Car

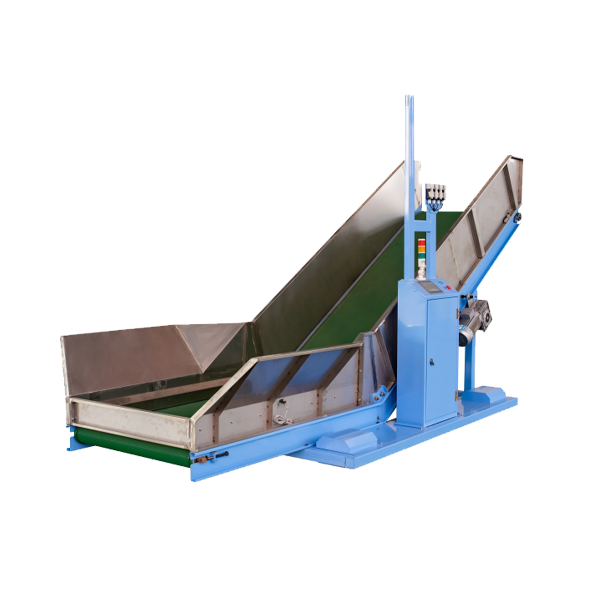

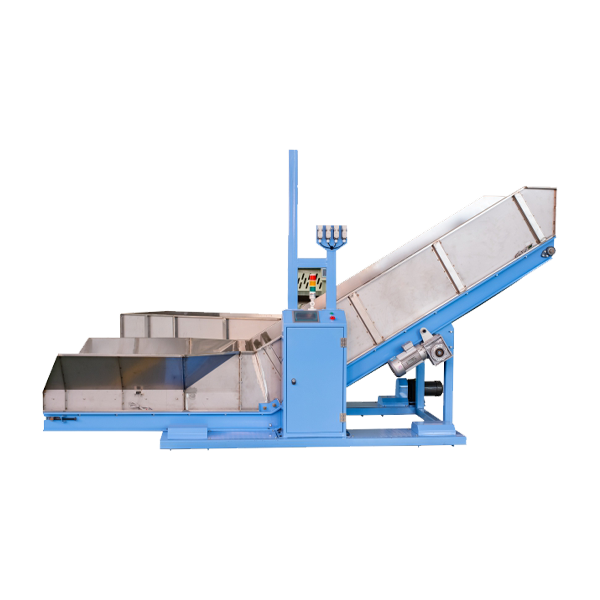

Shuttle Car

Product Overview: In the IWS integrated washing system, all linens exiting the washers are transferred by the shuttle car, either for drying or directly to the unloading station. The L-shaped shuttle car design increases the gap between the drum and the shuttle car, enhancing loading capacity and ensuring a looser discharge of the linens.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Video

Technical Features

Automatic Distribution

The shuttle car features an automatic distribution function, preventing linens from clumping together, which can impede the dryer loading process.

Positioning Design

It uses a binary-coded positioning design that is accurate and reliable, preventing malfunctions.

Intelligent Detection

Intelligent detection of position and distance allows for automatic speed adjustment, enhancing linen transfer efficiency.

Brake Positioning

Equipped with brake positioning to prevent movement during loading and unloading operations.

Load Capacity

Distribution Distance

The long belt line provides an effective distribution distance, making the distribution of linens easier.

Intelligent

Efficient

Energy-saving

Easy to Operate

Technical Parameters

Parameter	Unit	CS-4200
Rated Load Capacity	kg	≥300
Conveyor Belt Width	mm	1000
Power Supply Mode	v/p/Hz	380/3/50
Conveyor Belt Motor Power	kW	1.5
Shift Motor Power	kW	0.75
Overall Weight	kg	680
Dimensions - W×D×H	mm	4255×1640×2192
