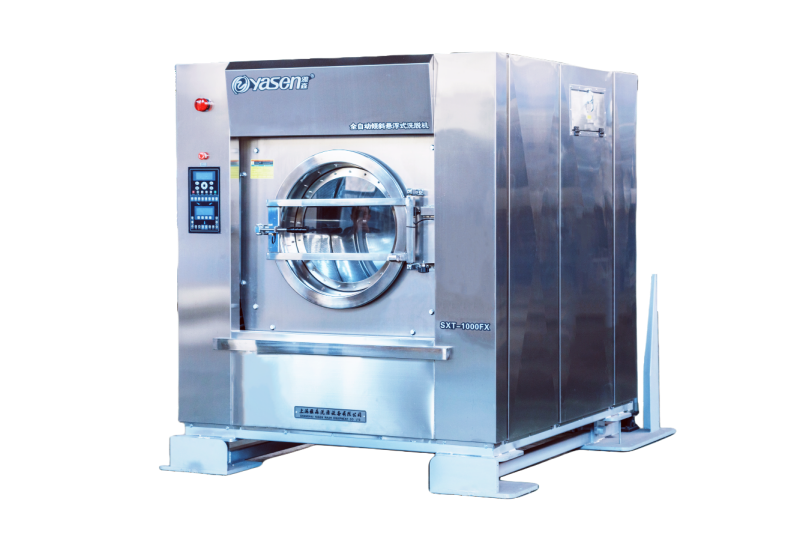

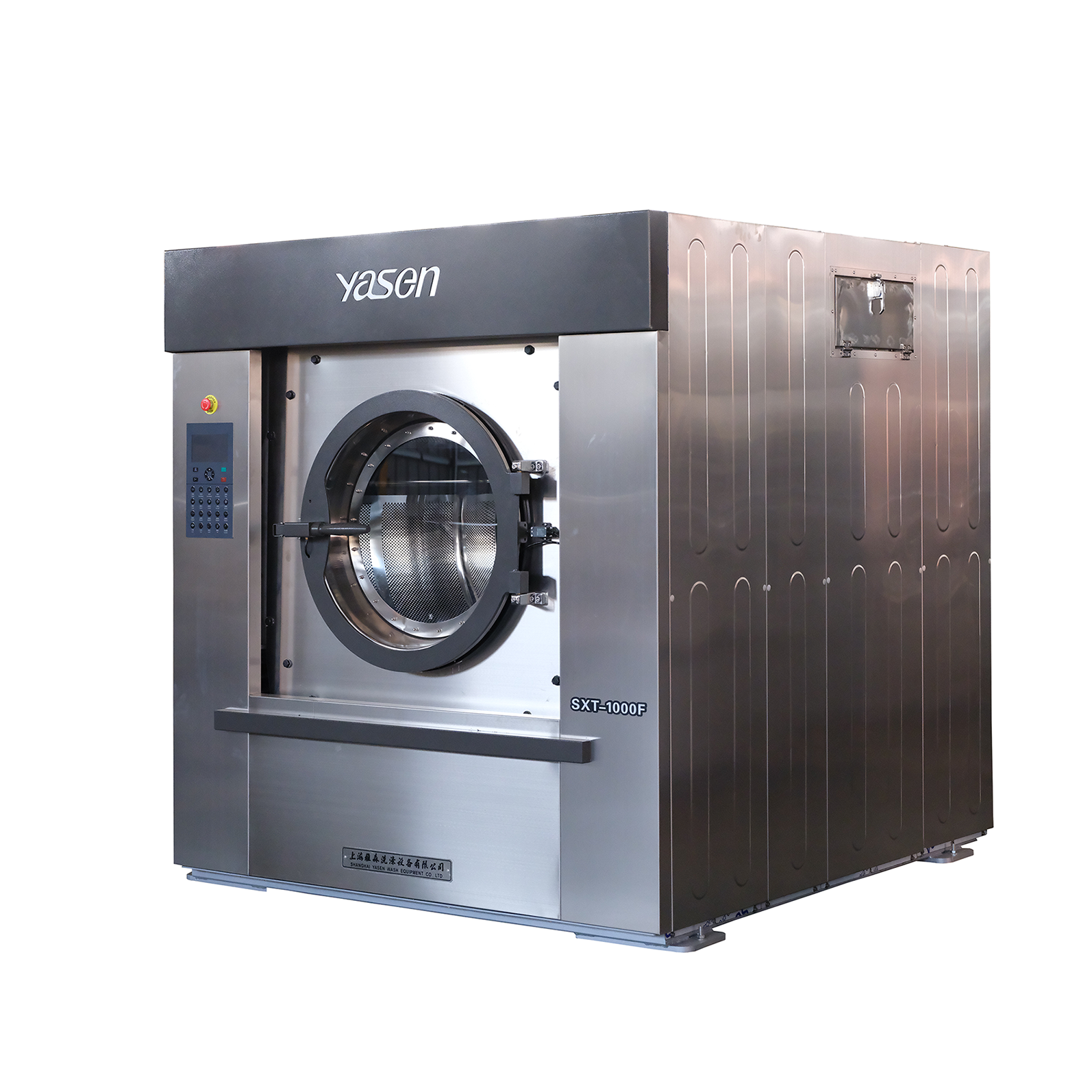

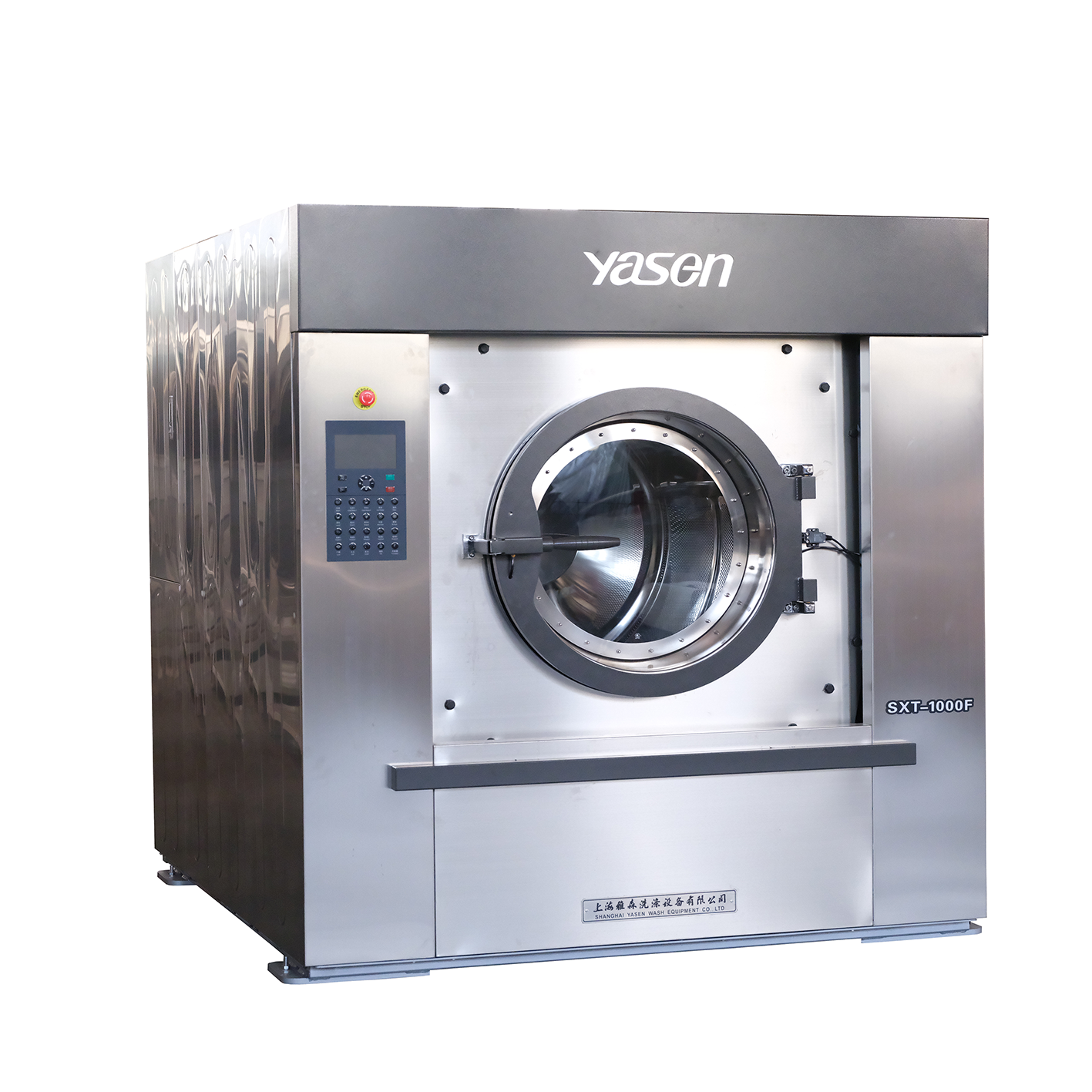

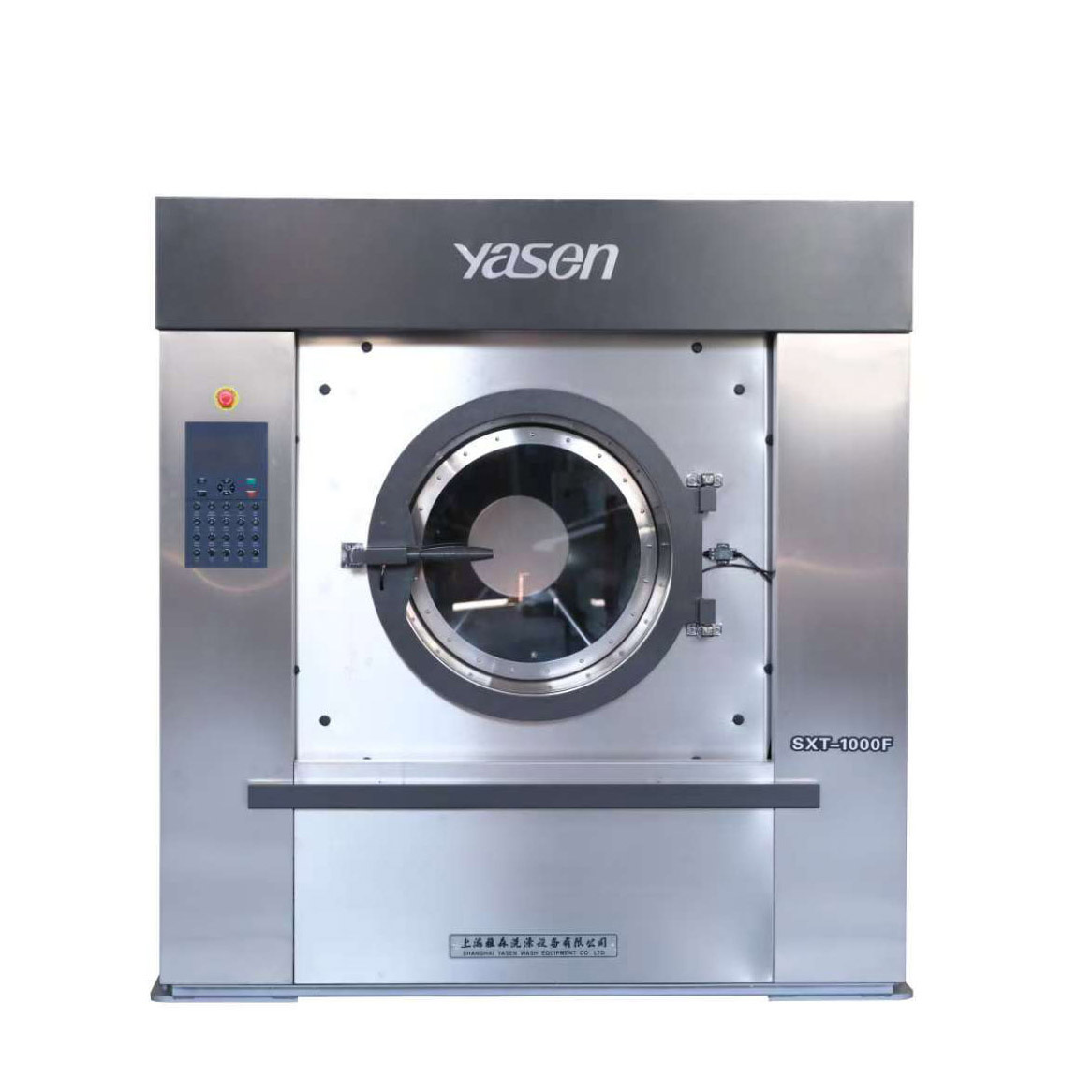

Tilt discharge washing machine
Tilt discharge washing machine

Tilt discharge washing machine

Product Overview: The inclined discharge water elution and dry dual-purpose machine is carefully built by our company on the basis of the suspension type washing and stripping machine. The inclined discharge washing and stripping machine can improve work efficiency, reduce labor intensity, and greatly save labor costs. It is suitable for hotels, restaurants, hospitals, clothing factories, industrial and mining enterprises and individual washing and dyeing industries
Application Industry:
Star Hotel Laundry
Medical Sanitary Washing
Public Laundry Factory
Brand Chain - Laundry Shop
Video

Technical Features

Tilt discharge washing machine
Automatic computer control design
Washing machine professional computer control system, superior performance and strong function. Built-in 30 sets of programmable automatic programs and 5 sets of standard procedures, humanized operation interface. Large screen LCD display, stable operation, easy maintenance.
High strength performance extraordinary endurance
unique spindle sealing technology, high strength stainless steel inner cage, finite element optimization design of the outer cylinder block and a distinctive high strength large shaft seat and high precision short shaft design, equipment in large load conditions of extraordinary service life.
The "micro" vibration era of the washing machine
The suspension body scientifically increases the load and counterweight to achieve the best balance. The spring of the shock absorber system is specially designed according to the different recovery torque of the suspension body, so as to achieve the best shock absorber efficiency.
Frequency conversion stepless speed regulation
high quality bearings, quiet and stable operation, imported sealing elements, stainless steel panel, unique material feeding system, effective against high temperature and strong acid and alkali conditions. Safety door lock linkage device to ensure safety; Large caliber loading door humanized design.
Compared with the non-automatic discharge manual pulling discharge
the tilting discharge washing machine saves a lot of time, greatly reduces the labor intensity of workers, improves the work efficiency, improves the production of washing linen in the washing plant, and saves electricity costs, steam costs and labor wages. Linen has a long service life.
Widely used, good design
5-star hotels, large washing plants, large baths, schools, three A hospital medical hygiene washing and washing quality requirements are very high, but also need high speed, high efficiency, energy saving, time saving, provincial manual large-scale washing customer design and manufacturing. With automatic tilt discharging function. Precision bearing design, easy to fold and assemble.
<
>
Intelligent

Intelligent

Efficient

Efficient

Energy-saving

Energy-saving

Easy to Operate

Easy to Operate

Technical Parameters


ParameterUnitSXT-1000FXSXT-1300FXSXT-1500FX
Rated capacitykg100130150
Take the garment tilt Angle°25°22°20°
Rotating cage
diametermm120013001470
Depth of diametermm888980880
Speed of cage rotation
washingrpm353228
High height offrpm670650620
Electrical systemv/p/Hz380/3/50380/3/50380/3/50
Motor powerkW7.51115
Electric heating type powerkW
Mode of heating Steam heatingSteam heatingSteam heating
Diameter of steam pipeinchG1″G1″G11/2″
Steam pressureMPa0.4-0.60.4-0.60.4-0.6
Cold/hot water pipe sizeinchG11/2″G2″G2″
Tap water pressureMPa0.2-0.40.2-0.40.2-0.4
Outlet of watermmΦ127Φ127Φ140
Compressed air pressureMPa0.4-0.60.4-0.60.4-0.6
NoisedB(A)≤78≤78≤78
Whole machine weightkg330042005200
Width x depth x heightmm2060×2545×21502210×2685×21852320×2375×2465
