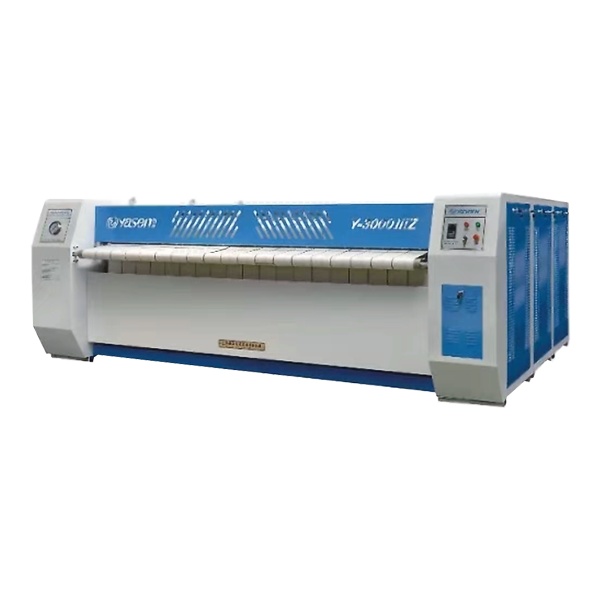

Fully automatic roller ironing machine

Product Overview: The Y series automatic roller ironing machine is a new generation product developed by our company. It is an ideal equipment for ironing and shaping various flat fabrics such as bed sheets, quilt covers, tablecloths, etc. after washing and dehydration in star-rated hotels, hospitals, laundry factories, industrial and mining institutions, etc.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Variable frequency speed regulation

This machine adopts variable frequency speed regulation (single roller is electromagnetic speed regulation), users can adjust the speed according to the needs of the fabric to improve ironing efficiency.

Fine grinding

The roller is made of high-quality stainless steel with a diameter of Φ800, and the surface is finely ground. Each transmission shaft is treated with an overall galvanizing process to extend the service life of the whole machine.

Reduce energy consumption

The unique large wrap angle effective heating working area design effectively improves the ironing speed and fully utilizes thermal energy to reduce energy consumption.

Easy maintenance

Adopting motor, reducer, chain transmission, simple structure, convenient maintenance, accurate and reliable transmission, stable operation.

Speed drive

Variable frequency speed drive, small impact current at startup, uniform and stable acceleration, no effect on the circuit, low failure rate, stable operation, and power saving. .

Multi-roller design

The combined multi-roller design is convenient for users to increase the number of rollers as the output increases, without adding equipment and remodeling equipment, effectively saving floor space and personnel equipment, and reducing operating costs.

Technical Parameters

Parameter	Unit	Y-3000IZ/D	Y-3000IIZ/D	Y-3000IIIZ	Y-3000IVZ	Y-3000VZ	Y-3000VIZ
Parameter	Unit	Y-3300IZ/D	Y-3300IIZ/D	Y-3300IIIZ	Y-3300IVZ	Y-3300VZ	Y-3300VIZ
Maximum ironing width	mm	3000/3300	3000/3300	3000/3300	3000/3300	3000/3300	3000/3300
Roller diameter	mm	800	800	800	800	800	800
Number of rollers		1	2	3	4	5	6
Ironing speed	m/min	0-9	0-15	0-22	0-30	0-35	0-40
Electric	v/p/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Motor Power	kW	1.5	1.5	2.2	1.5*2	2.2*2	2.2*2
Steam heating type
steam pressure	MPa	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Steam pipe diameter	inch	G11/2″	G11/2″	G11/2″	G11/2″	G11/2″	G11/2″
Condensate connection	inch	G11/2″	G11/2″	G11/2″	G11/2″	G11/2″	G11/2″
Electric heating type
Electric heating power	kW	36	70	/	/	/	/
Total Weight	kg	2200	3000	3800	4600	5400	6200
Total Weight	kg	2400	3400	4400	5400	6400	7200
Width × Depth × Height	mm	4080×1568×1302	4080×2508×1302	4080×3448×1302	4080×4388×1302	4080×5328×1302	4080×6268×1302
Width × Depth × Height	mm	4380×1568×1302	4380×2508×1302	4380×3448×1302	4380×4388×1302	4380×5328×1302	4380×6268×1302
