Fully automatic high-speed folding machine > High efficiency towel folding machine

High efficiency towel folding machine

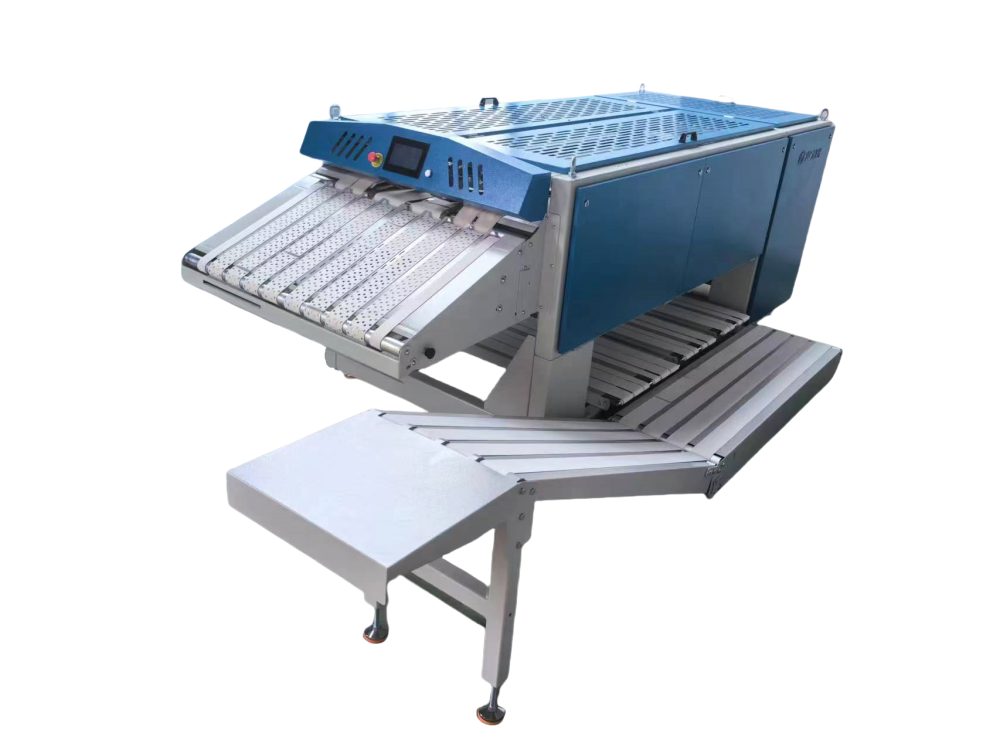

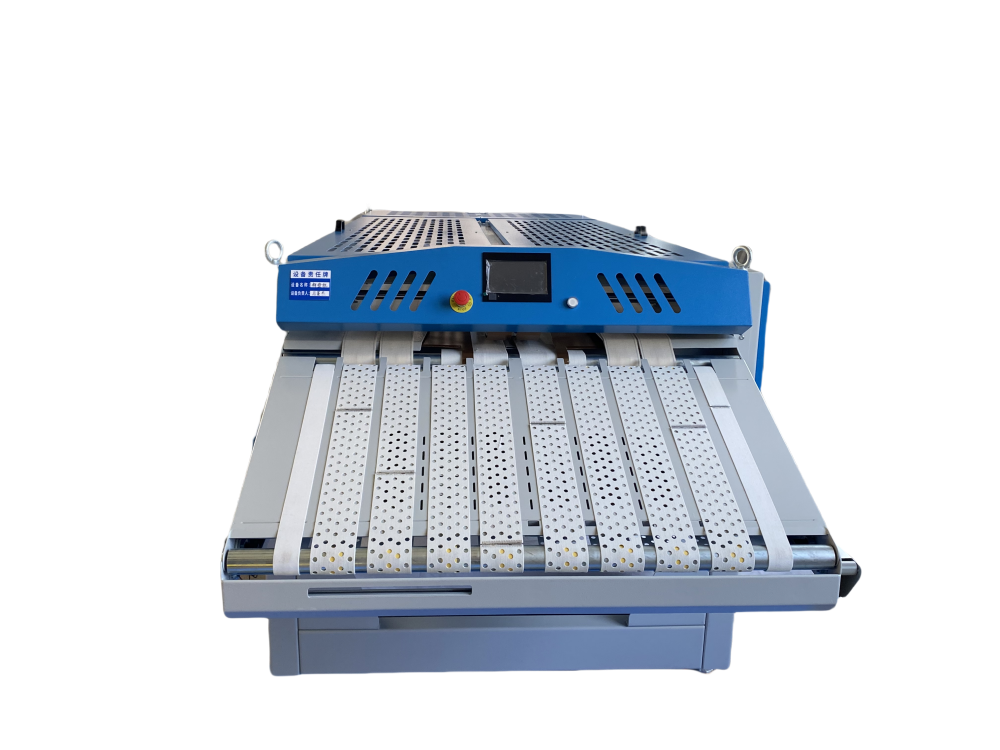

Product Overview: Fully automatic towel folding machine, French folding is achieved by air knife, stable operation, simple operation, suitable for star-rated hotels, bathhouses, nursing homes, beauty salons, and subsequent supporting equipment. It is used to automatically fold and output flat fabrics.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Control system

Automatic stacking technology, fast response speed, short working cycle. It adopts a variety of intelligent controls, combined with new technologies such as computers, communications, and control, and is manufactured for the actual needs of towels. It has personalized embedded software and intelligent comprehensive monitoring functions.

French folding

Automatically adapt to the folding thickness of different towels to ensure the folding effect of towels of different thicknesses. French folding is achieved with air knives.

Simple operation

It can realize multiple manual and automatic modes, with simple operation, high degree of automation, and adapt to many types of towels.

Control system

Stacking and discharging

When stacking and discharging, an automatic telescopic device is used to control the extension and retraction of the conveyor belt, and ensure that its running direction remains unchanged, ensuring stacking

Technical Parameters

Name	Unit	Domestic system (knife folding)	Import system (knife folding)	Import system (cross stack)
model		FM-1200N	FM-1200SP	FM-1200AP
Maximum width size	mm	1200×2200	1200×2200	1200×2200
Running speed	pcs/h	800-1000	800-1000	800-1000
Electric	Hz	AC380V/3P/50	AC380V/3P/50	AC380V/3P/50
Installed power	KW	2.1	2.1	2.1
Air pressure	MPa	0.6	0.6	0.6
Gas consumption	Piece	6L	6L	6L
Total Weight	kg	1000	1000	1000
Width × Depth × Height	mm	1400×3850×1450	1400×3850×1450	1590×2950×1540

High efficiency towel folding machine

Technical Features

Intelligent

Efficient

Energy-saving

Easy to Operate

Technical Parameters
