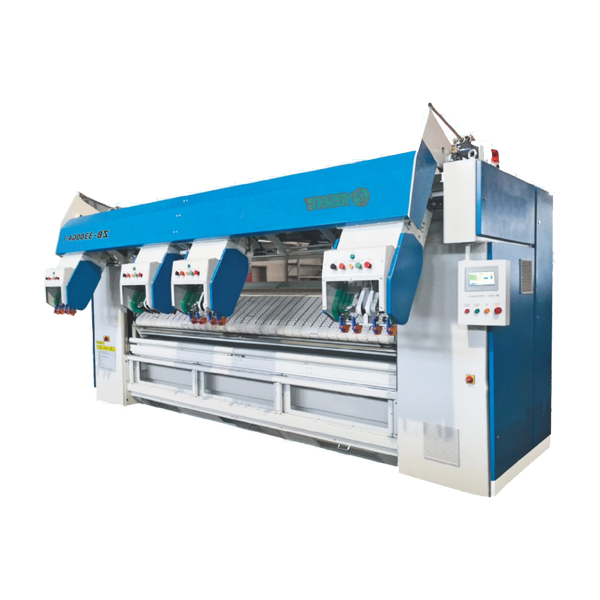

High speed four-station spreading machine

Product Overview: It has a four-station synchronous transmission function, which solves the problem of slow manual operation and poor linen flattening effect in the past, improves the operation speed to reduce the transfer interval between linens, has fast speed and high precision. Yasen's high-speed four-station cloth spreading machine and high-speed double-sided ironing machine are used in conjunction with a fully automatic high-speed folding machine to form an "ultra-high-speed ironing line" with a program linkage function.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Efficient and fast

Fast conveying speed, with four-station synchronous transmission function, solves the problem of poor linen flattening effect due to slow manual operation in the past, improves the operation speed to reduce the transfer interval between linens, and further improves the linen conveying efficiency. Fast speed and high precision.

Simple operation

The spreading speed of the spreading machine relies on frequency conversion control to meet the speed required by the ironing process of different linens. In terms of the linen flattening effect, the machine adopts an automatic feeding device. Workers only need to place the two corners of the linen on the cloth clip ②. The operation is simple and convenient, and the safety is high.

Computer Control

Adopts a 10-inch color-enhanced touch screen programmable computer control. Each station has a statistical function, which measures the feeding quantity, which is convenient for operators to manage. It has a station feeding function, high work efficiency, saves labor costs, and has a linen suction and smoothing function to improve the flatness of the linen.

Automatic telescopic

The discharge table can be automatically telescopic. There is no need to move the machine when ironing small pieces of fabric. It is easy to operate. The spreading manipulator is driven by a servo motor to keep the linen in the specified feeding position. The surface is treated with special technology and is durable.

Air duct structure

The unique air duct structure design improves the flatness of the linen conveying, smoothes and conveys the sheets, quilts and other fabrics before entering the ironing machine, so that the fabrics can be ironed and folded in an ideal state.

Linkage design

Yasen high-speed four-station spreading machine, high-speed double-sided ironing machine and fully automatic high-speed folding machine are used together to form an "ultra-high-speed ironing line" with program linkage function.

Model	Electric	Installed power	Number of Workstations	Running speed	Spread width	Maximum work efficiency	Air pressure	Gas consumption	Net weight	Dimensions
ZB-3300QIV	AC380V/3P/50Hz	13kW	4 stations	10-60m/min	1600-3300mm	800-1000pcs/h	0.6MPa	500L/min	5000kg	5130×3120×2620mm
