High-Efficiency Energy-Saving Dryer > Automatic fast dryer

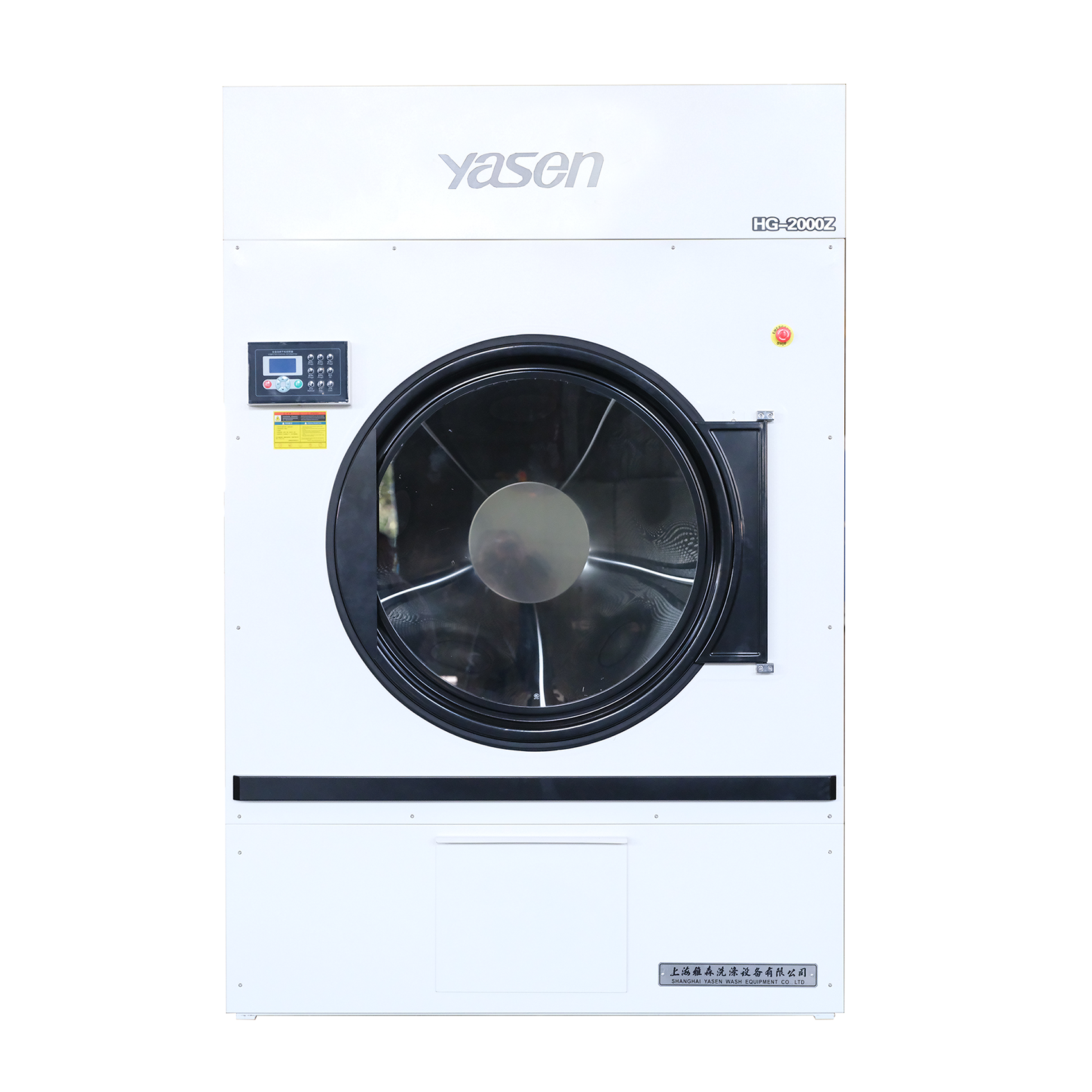

Automatic fast dryer

Product Overview: Automatic fast drying machine computer intelligent automatic control, can be preset 5 sets of automatic programs, users can according to the drying of different linen, a variety of temperature, time, forward and reverse program Settings, care for the drying process of linen.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Computer control, simple operation

Computer intelligent automatic control, can be preset 5 sets of automatic programs, users can according to the drying of different linen, a variety of temperature, time, forward and reverse program Settings, careful care of the drying process of linen.

Stable operation, easy maintenance

The transmission system adopts two-stage belt drive, stable operation and easy daily maintenance. Multi-wing balanced wind wheel design, no plush, low noise, stable operation. Easy to maintain.

Humanized design, safe and convenient

Large diameter clothing door design, easy to load and take clothes; The door body is deeply involved in the cage interface to avoid scratching of linen, humanized design, safe and convenient.

Fast drying, efficient energy saving

HG SERIES DRYER ADOPTS LARGE SIZE HEAT EXCHANGER, EFFECTIVE HEATING SURFACE, fast heating, short drying time, fast drying, drawer type PLUShy collection device, pull out can clean.

Large ventilation hole design

The inner cage adopts high density and large ventilation hole design to ensure that the heat passes through the linen; Compared with the optimized design of exhaust air volume, heat utilization is more sufficient, so that the linen can be fully dried in a short time, and energy saving.

Rotary cage single and double operation

Single and double direction operation can be set to prevent wrapping and wrinkling of large linen, so that the drying efficiency and quality are best. The whole body adopts electrostatic spray technology and high quality insulation material to prevent heat dissipation and reduce body surface temperature.

Technical Parameters

Parameter	Unit	HG-240Z/D	HG-300Z/D	HG-500Z/D	HG-700Z/D	HG-1000Z/D	HG-1600Z/D	HG-2000Z/D
Parameter	kg	12	15	25	35	50	80	100
Drum
Diameter	mm	750	750	960	960	1060	1200	1470
Depth	mm	500	650	650	880	1000	1000	1180
Speed of cage rotation	rpm	48	48	40	38	35	30	28
Speed of cage rotation	v/p/Hz	380/3/50220/1/50	380/3/50220/1/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Main Motor Power	kW	0.12	0.12	0.75	0.75	1.1	1.1	2.2
Fan Motor Power	kW	0.33	0.33	0.55	0.75	1.1	1.5	1.5*2
Heating Method		Steam/electric heating	Steam/electric heating	Steam/electric heating	Steam/electric heating	Steam/electric heating	Steam/electric heating	Steam/electric heating
Electric heating type power	kW	7	7	20	32	35.2	54	54
Diameter of steam pipe	inch	G 3/4″	G3/4″	G3/4″	G1″	G1″	G11/2″	G11/2″
Steam pressure	MPa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Whole machine weight	kg	120	150	350	400	480	550	800
Width x depth x height	mm	850×880×1260	850×1200×1725	1060×1200×1970	1060×1550×1970	1160×1660×2100	1420×1500×2330	1550×1750×2400
