IWS Integrated Washing System > Weighing Machine
Weighing Machine
Weighing Machine
Weighing Machine
Weighing Machine

Weighing Machine

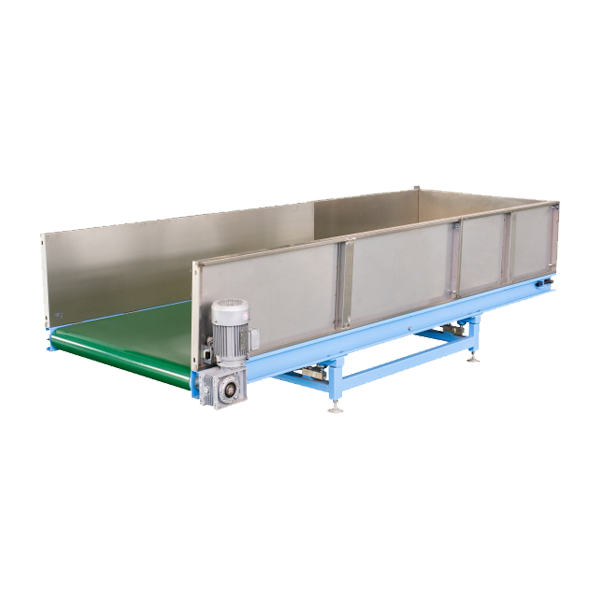

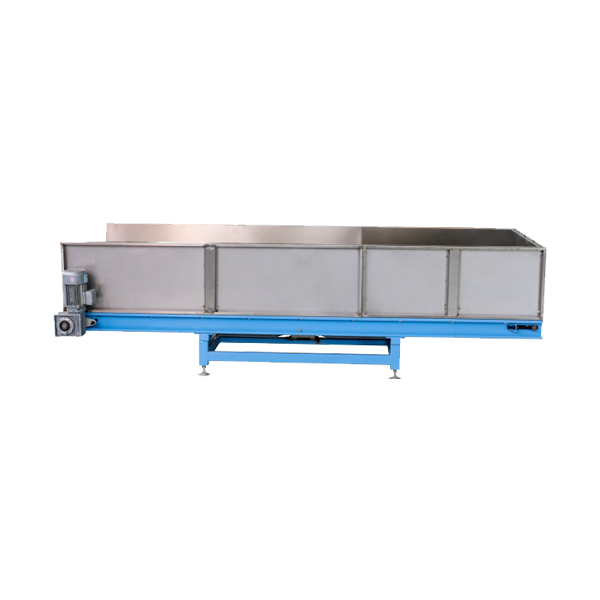

Product Overview: In the integrated washing system, the weighing machine also serves as the integrated feeding point. It features a horizontal conveyor belt, making it easier for workers to load items. The weighing machine has a weight display function, which is also shown in real-time on the central control system. If the weight of the loaded linens exceeds the set limit, the central control system prevents this batch from being automatically conveyed to the loading conveyor line. The 3-meter length design allows for more dispersed linen loading and can accommodate multiple workers feeding items simultaneously.
Application Industry:
IWS Integrated Washing System
Star Hotel Laundry
Medical Sanitary Washing
Public Laundry Factory
Video

Technical Features

Weighing Machine
Weighing Machine
Efficient Weighing
The weighing machine provides quick and accurate weight information, optimizing the linen distribution process.
Central Control System
The weight is displayed in real-time on the central control system. If the weight of the loaded linens exceeds the set limit, the central control system prevents this batch from being automatically conveyed to the loading conveyor line.
High-Precision Measurement
Equipped with high-precision sensors to ensure the accuracy of the measurements.
Weight Data Display
The weighing function is simple to operate; placing linens on the weighing machine displays the weight immediately.
Linen Feeding
The weighing machine also serves as the integrated feeding point. It features a horizontal conveyor belt, making it easier for workers to load items.
Load Distribution
The 3-meter length design allows for more dispersed linen loading, accommodating multiple workers feeding items simultaneously.
<
>
Intelligent

Intelligent

Efficient

Efficient

Energy-saving

Energy-saving

Easy to Operate

Easy to Operate

Technical Parameters


ParameterUnitCZ-3000
Rated Load Capacitykg≥150
Conveyor Belt Widthmm1000
Power Supply Modev/p/Hz380/3/50
Conveyor Belt Motor PowerkW0.75
Overall Weightkg320
Dimensions - W×D×Hmm3000×1245×860
