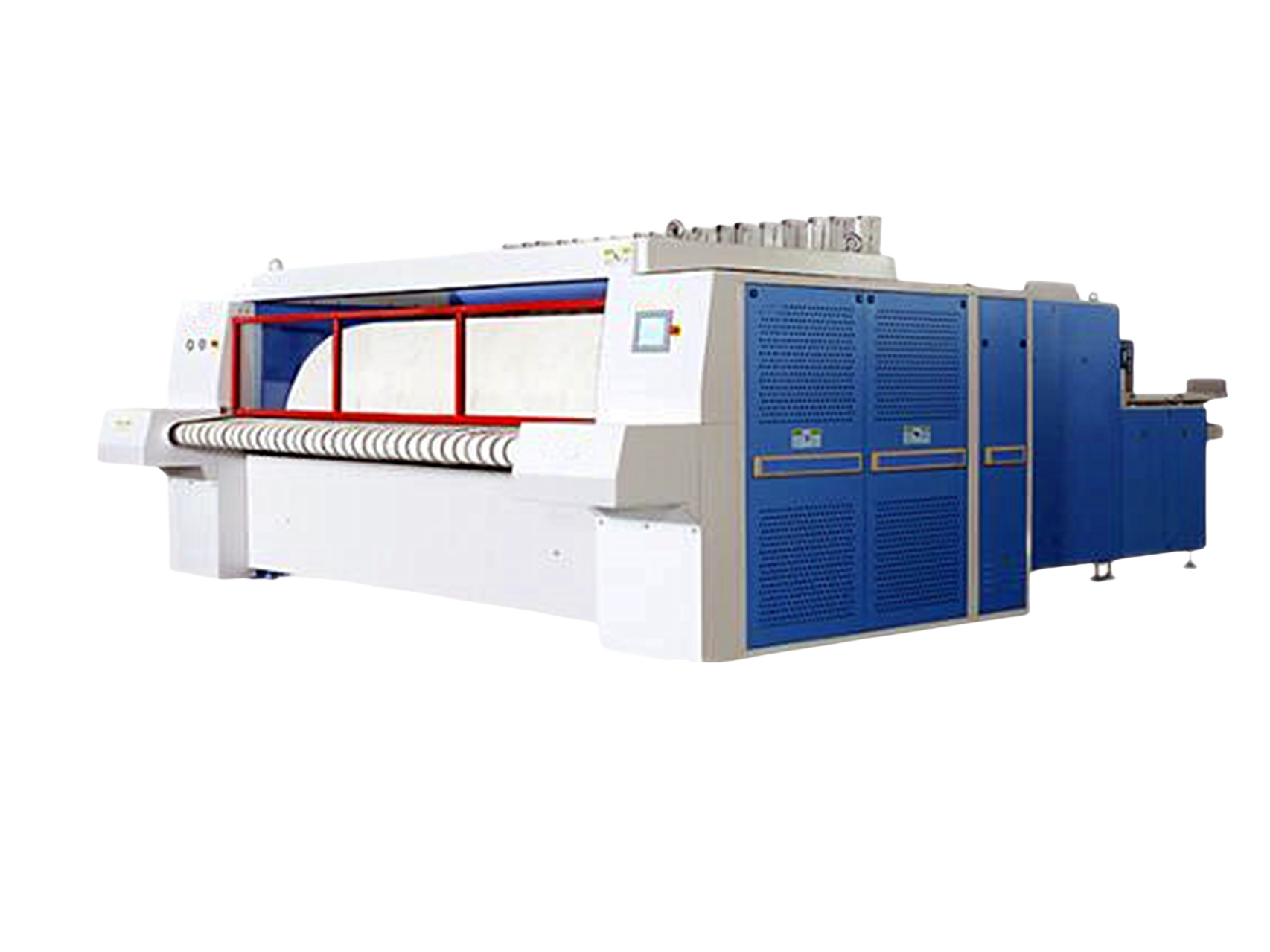

High speed slot ironing machine

Product Overview: The ironing tank is imported from Germany, with a large arc envelope angle of the heating tank, a large heating area, efficient heat energy transmission, a frequency conversion speed regulation system, and stepless speed regulation according to the linen, saving electricity and energy. The ironing tank has its own heat insulation cover to effectively prevent heat dissipation. Together with the independent exhaust system and efficient water-repellent system of each tank, it ensures that the tank body is dry and the fabric is quickly ironed.

Application Industry:

IWS Integrated Washing System

Star Hotel Laundry

Medical Sanitary Washing

Public Laundry Factory

Video

Technical Features

Efficient

Imported from Germany, the heating tank has a large arc envelope angle, a large heating area, and efficient heat energy transmission. The ironing machine speed can reach 50 meters.

Energy saving

The variable frequency speed regulation system can adjust the speed according to the linen, saving electricity and energy. The ironing tank has a heat insulation cover to effectively prevent heat dissipation. With the independent exhaust system and efficient water drainage system of each tank, it ensures that the tank body is dry and the fabric is ironed quickly.

Stable

High quality is the design focus, with high-quality materials (the imported heating tank from Germany is used to resist the pressure and thermal expansion of the equipment, and the imported brand reducer has a large torque, stable operation, durable and stable quality.

Easy maintenance

The fully automatic computer controller has an intelligent fault alarm and detection system, which is easy to maintain. The steam pressure and low temperature protection system ensures the best fit between the roller and the tank, reduces the wear of consumables, extends the service life of the hot felt, makes maintenance easier and reduces maintenance time.

Sturdy and durable

The unique hardness and smooth special process treatment, the effective heating tank has good resistance to the pressure and thermal expansion of the equipment, and the considerate design makes the stored heat last longer, saving precious energy when starting and shutting down.

Intelligent control

The large-screen LCD touch intelligent system has a good human-computer dialogue interface and is easy to operate. There are more than 10 sets of automatic programs for customers to write by themselves to meet different linen needs. The computer controller is equipped with fault self-diagnosis and alarm functions, and it is easy to maintain.

Technical Parameters

High speed slot ironing machine
model	unit	GY-13033IZ	GY-1303Z3IIZ	GY-13033IIIZ	GY-8033IIZ	GY-8033IIIZ
Maximum ironing width	mm	3300	3300	3300	3300	3300
Roller diameter	mm	1300	1300	1300	800	800
Number of rollers		1	2	3	2	3
Ironing speed	m/min	3—25	3—40	3—50	3—25	3—40
steam pressure	MPa	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Steam pipe diameter	inch	G2＂	G2＂	G2＂	G2＂	G2＂
Condensate connection	inch	G2＂	G2＂	G2＂	G2＂	G2＂
Steam consumption	Kg/h	230	460	580	230	460
Exhaust port	mm	Φ200	Φ200	Φ200	Φ200	Φ200
Exhaust volume	m³/h	2200	3500	5500	2400	3600
Drive motor	KW	9.2	9.2X2	9.2X3	3X2	3X3
Conveyor belt motor	KW	0.75	1.5	1.5	0.75	0.75
Electric	v/p/Hz	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Total Power	kW	11.5	22.9	33.6	9.8	14.3
Fan power	kW	1.5	1.5X2	1.5X3	1.5X2	1.5X3
Total Weight	kg	5500	11000	16000	7800	9800
Width × length × height	mm	4865×2880×2200	4865×4550×2200	4865×6210×2200	4630×3510×1900	4630×4660×1900
